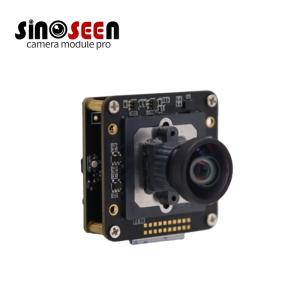

The SNS-DZ1225-V1.0 camera module combines clarity, reliability, and easy integration, making it a versatile imaging solution for surveillance, industrial automation, education, and biometric security. Its 1/2.65” CMOS sensor delivers Full HD+ video at 30fps with vibrant colors and low noise. With a wide 108° field of view and USB2.0 plug-and-play support, this module helps developers accelerate deployment across multiple platforms.
1/2.65” CMOS sensor with 2960×1666 effective pixels
Wide FOV (108° diagonal) with low distortion
Dynamic range up to 81.5dB for balanced exposure
Compact M12 lens mount for flexible integration
USB2.0 interface, supports MJPG/YUY2 video output
Cross-platform compatibility: Windows, Mac, Linux, Android
| Parameter | Specification | Remarks |
|---|---|---|
| Module # | SNS-DZ1225-V1.0 | – |
| Image Sensor Size | 1/2.65” CMOS | – |
| Effective Pixels | 2960 × 1666 | ~2.96MP |
| Pixel Size | 2.0µm × 2.0µm | – |
| Output Format | RAW 10-bit, MJPG, YUY2 | – |
| Max Frame Rate | 30fps @ all supported resolutions | – |
| Supported Resolutions | 2944×1656 / 2048×1536 / 1920×1080 / 1600×1200 / 1280×960 / 1280×720 / 800×600 / 640×480 | MJPG |
| SNR (max) | 35dB | – |
| Dynamic Range | 81.5dB | – |
| Min. Illumination | TBD | – |
| Interface | USB2.0 (5pin, 1.25mm) | – |
| Transfer Rate | 480Mbps | – |
| Power Supply | 5V ±5% | – |
| Power Consumption | TBD | No LED / IR-LED optional |
| Operating Temp. | -30℃ to +60℃ | – |
| Storage Temp. | -40℃ to +70℃ | – |
| Lens | EFL 2.8mm ±5%, F/NO 2.4 ±5%, FOV D:108° / H:97° / V:67° ±3° | 4G2P+IR, M12*P0.5 |
| Optical Distortion | < -1% | – |
| Focus Distance | 60cm – ∞ | – |
| PCB Ink | Black | – |
| OS Support | Windows XP/Vista/7/8.1/10, Mac, Android, Linux (UVC) | Plug & Play |
